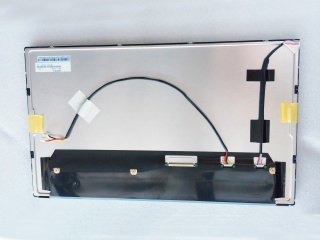

| PartNumber | HSD156JUW1-A00 |
| Marca | HannStar |
| mărimea | 15.6 |
| Aplicație | Industrial Outdoor H |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | 8S6P |
| Interfață | LVDS |
| producător | HannStar |
| numele modelului | HSD156JUW1-A00 |
| marimea ecranului | 15.6 inch |
| tipul de ecran | LCM , a-Si TFT-LCD |
| numărul de pixeli | 1920(RGB)×1080 (FHD) 141PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 344.16 × 193.59 (H×V) |
| contur (mm) | 363.8 × 215.9 × 12 (H×V×D) |
| zona rama (mm) | 346 × 195.4 (H×V) |
| tratament | Antiglare |
| luminanţă | 850 cd/m² (Typ.) |
| Raport de contrast | 1000 : 1 (Typ.) (TM) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| raspuns | 18/17 (Typ.)(Tr/Td) ms |
| vedere buna la | Symmetry |
| modul de lucru | IPS Pro, Normally Black, Transmissive |
| adâncimea culorii | 16.7M 70% NTSC |
| lumina de fundal | 8S6P WLED , 50K hours , With LED Driver |
| masa | TBD |
| folosit pentru | Industrial Outdoor High Brightness Automotive Display |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| tipul semnalului | LVDS (2 ch, 8-bit) , 30 pins Connector |
| alimentare cu tensiune | 5.0V (Typ.) |
| max. evaluări | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
