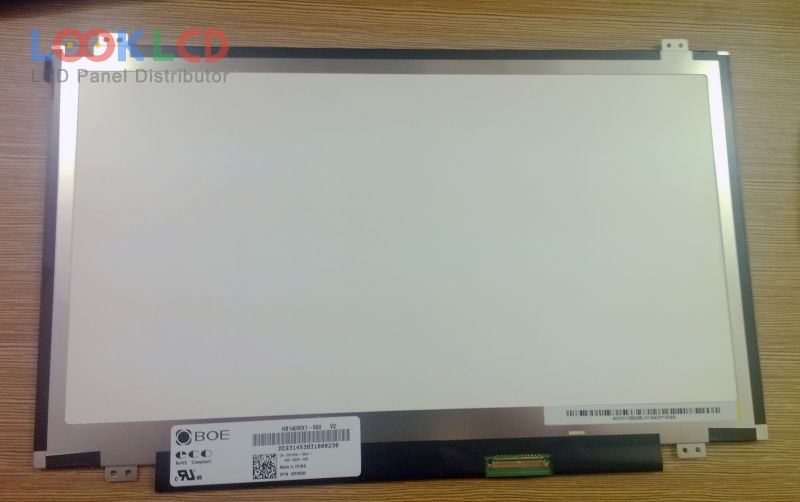

| PartNumber | HB140WX1-500 |
| Marca | BOE |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | HB140WX1-500 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.399×173.952 mm |
| contur | 320.9×187.6×3 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 12 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S4PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
