| PartNumber | COM121T9M14CSS |
| Marca | Ortustech |
| mărimea | 12.1 |
| Aplicație | Industrial |
| Rezoluţie | 800×600 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | Ortustech |
| model | COM121T9M14CSS |
| dimensiunea diagonalei | 12.1 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×600 [SVGA] 82PPI |
| configurație | RGB Vertical Stripe |

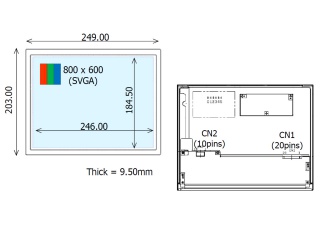

| Zonă activă | 246(H)×184.5(V) mm |
| contur dim. | 260.5(H)×203(V) ×10(D) mm |
| luminanţă | 600 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 40 (Max.)(Tr+Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10) |
| mod de operare | FFS, Normally Black, Transmissive |
| culoare suport | 262K/16.7M 48% NTSC |
| sursă de lumină | WLED , 70K hours , With LED Driver |
| greutate | 500g (Typ.) |
| proiectat pentru | Industrial |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA121TH11-DE1 | Mitsubishi | 12.1 | 1280×800 |
| AA121XL01 | Mitsubishi | 12.1 | 1024×768 |
| B121EW13 V1 | AUO | 12.1 | 1280×800 |
| G121STN01.0 | AUO | 12.1 | 800×600 |
| HT121WX2-210 | HYDIS | 12.1 | 1280×800 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| LTN121AT04-001 | Samsung | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| TX31D32VM2AAA | KOE | 12.1 | 800×600 |
