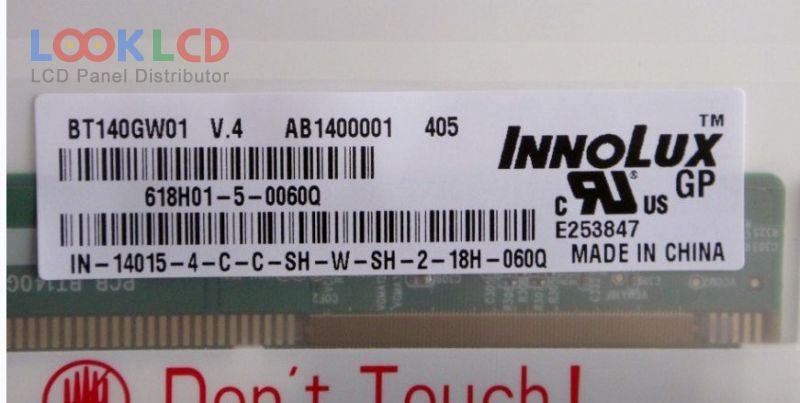

BT140GW01 V.4

BT140GW01 V.4
BT140GW01 V.4 thumb
Marca
Innolux
mărimea
14.0
Aplicație
NBPC
Rezoluţie
1366×768
Compoziţie
LCM
Luminozitate
200
CR
600:1
Culori
262K
Iluminare de fundal
WLED
Interfață
LVDS
In Stock
12505
Specificații

PartNumber BT140GW01 V.4
MarcaInnolux
mărimea14.0
AplicațieNBPC
Rezoluţie1366×768
CompoziţieLCM
Luminozitate200
CR600:1
Culori262K
Iluminare de fundalWLED
InterfațăLVDS
marca panouluiCHIMEI INNOLUX
model de panouBT140GW01 V.4 30 Compatible model
tip panou a-Si TFT-LCD , LCM
dimensiunea panoului14.0 inch
rezoluţie1366(RGB)×768 , WXGA
modul de afișareTN, Normally White, Transmissive
Zonă activă309.399×173.952 mm
contur323.5×192×5.2 mm
stilul formeiWedge (PCBA Bent, Depth ≥5.2mm)
suprafaţăGlare (Haze 0%), Hard coating (3H)
luminozitatea200 cd/m² (Typ.)
Raport de contrast600:1 (Typ.)
culorile afișajului262K (6-bit), CIE193145%
timp de raspuns8 (Typ.)(Tr+Td)
unghi de vedere40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frecvență60Hz
tip lampaWLEDEmbedded (LED Driver)
interfață de semnalLVDS (1 ch, 6-bit), 40 pins
tensiune de intrare3.3V (Typ.)
aplicareaNBPC
Model de familie
BT140GW01 V.0 Innolux 14.0 1366×768
BT140GW01 V.4 Innolux 14.0 1366×768
BT140GW01 V.5 Innolux 14.0 1366×768
BT140GW01 V.A Innolux 14.0 1366×768
BT140GW02 V.0 Innolux 14.0 1366×768
BT140GW02 V.2 Innolux 14.0 1366×768
BT140GW02 V.9 Innolux 14.0 1366×768
BT140GW03 V.2 Innolux 14.0 1366×768
LP140WH6-TLB1 LG Display 14.0 1366×768
LTN140AT04-G01 Samsung 14.0 1366×768
