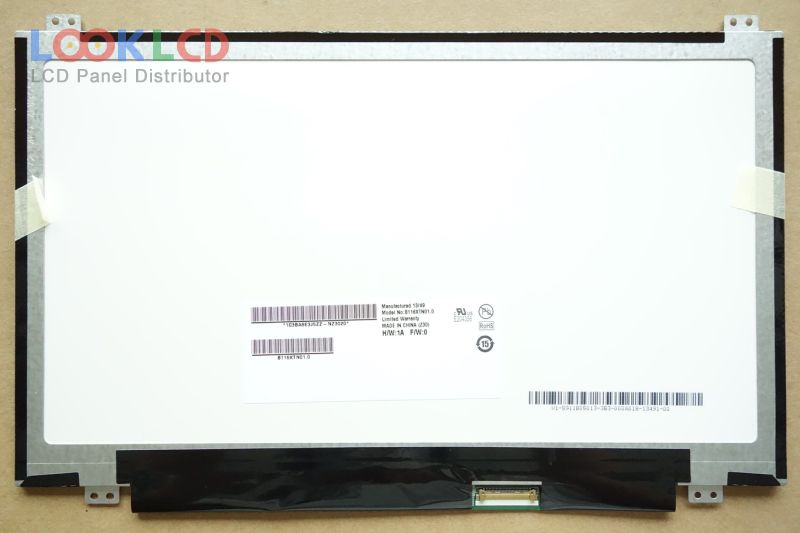

| PartNumber | B116XTN01.0 HW1A |
| Marca | AUO |
| mărimea | 11.6 |
| Aplicație | NOPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | AUO |
| model de panou | B116XTN01.0 HW1A |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 11.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 256.125×144 mm |
| contur | 278×168×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 3/5 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (2 Lanes), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NOPC |
