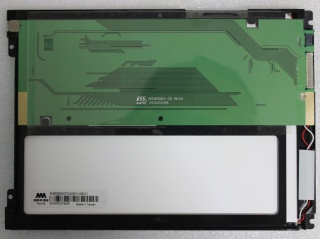

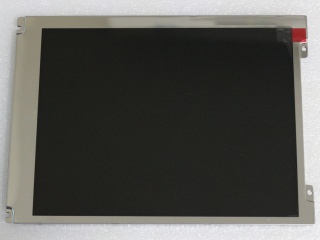

| PartNumber | AM-800600M3TNQW-01H-G |
| Marca | AMPIRE |
| mărimea | 8.4 |
| Aplicație | Industrial |
| Rezoluţie | 800×600 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | 12S4P |
| Interfață | LVDS |
| producător | AMPIRE |
| numele modelului | AM-800600M3TNQW-01H-G |
| marimea ecranului | 8.4 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 800(RGB)×600 (SVGA) 119PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 170.4 × 127.8 (H×V) |
| contur (mm) | 203 × 145.5 × 8.3 (H×V×D) |
| zona rama (mm) | 174.15 × 131.2 (H×V) |
| tratament | - |
| luminanţă | 450 cd/m² (Typ.) |
| Raport de contrast | 600 : 1 (Typ.) (TM) |
| unghi de vedere | 75/75/60/70 (Typ.)(CR≥10) |
| raspuns | 8 (Typ.)(Tr+Td) ms |
| vedere buna la | - |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 262K |
| lumina de fundal | 12S4P WLED , 50K hours , With LED Driver |
| masa | 280g |
| folosit pentru | Industrial |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| tipul semnalului | LVDS (1 ch, 6-bit) , Connector 20 pins |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA084VD02 | Mitsubishi | 8.4 | 640×480 |
| AM-800600M3TNQW-00H | AMPIRE | 8.4 | 800×600 |
| AM-800600M3TNQW-01H-F | AMPIRE | 8.4 | 800×600 |
| G084SN05 V9 | AUO | 8.4 | 800×600 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LQ9D03B | SHARP | 8.4 | 640×480 |
| LTA084C274F | TOSHIBA | 8.4 | 800×600 |
| LTM08C343S | TOSHIBA | 8.4 | 800×600 |
| LTM08C355S | TOSHIBA | 8.4 | 800×600 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
